ComeUp GIO 120s Winch

Name: ComeUp GIO 120s Winch
SKU: 9542
Availability: BackOrder

On order: Estimated delivery by March 12, 2026

On Order

Available on backorder

₹ 63,500.00 (incl. taxes) .

The ComeUp GIO 120s Winch delivers 12V 12000lb pulling power with synthetic rope, IP68 waterproof build, and a 6.5HP motor for reliable 4×4 recovery.

Available on backorder

On order: Estimated delivery by March 12, 2026

Buy It Now

Shipping Extra & Exchanges*
Flexible and secure payment
600,000 happy customers

Guarantee Safe & Secure Checkout

Description

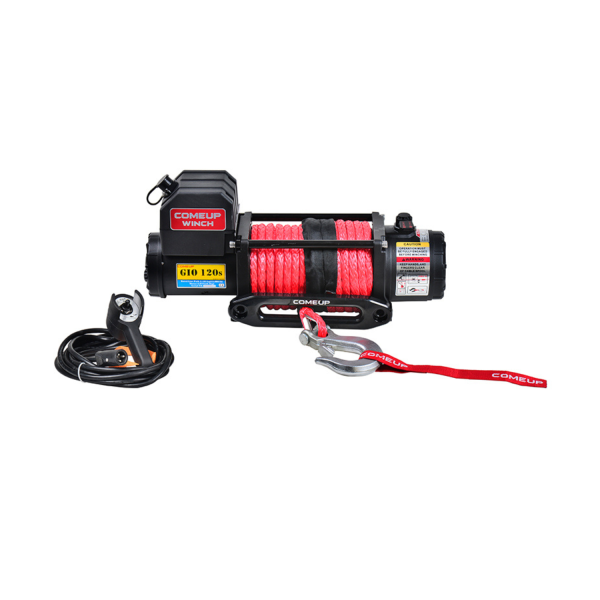

ComeUp GIO 120s Winch

The ComeUp GIO 120s Winch is engineered for serious off-road enthusiasts seeking power, performance, and reliability. Featuring a 12,000 lb (5,443 kg) single-line pull and a 6.5 HP 12V series-wound motor, it’s designed to handle tough recoveries with ease. Equipped with a synthetic rope, IP68 waterproof construction, and three-stage planetary gear system, the GIO 120s ensures smooth, efficient, and safe recovery even in the harshest terrains.

Key Features

Powerful Pulling Capacity: Rated for 12,000 lb / 5.4 tonnes, ideal for SUVs, pickups, and off-road 4x4s.

High-Performance Motor: 6.5 HP (4,847 W) 12V series-wound motor provides fast, consistent torque output.

Smooth Gear System: Three-stage planetary gear (234.6:1) ensures efficiency, strength, and quiet operation.

Durable Synthetic Rope: Lightweight 11 mm × 25.5 m synthetic rope offers superior flexibility and easy handling.

Exclusive Brake Design: Built-in No. 37C device delivers precise, secure control during load holding.

Rugged Construction: Aluminum die-cast housing and steel drum with matte black powder-coat finish.

Waterproof Control: Equipped with a sealed 5 m (17 ft) waterproof remote for safe operation in all conditions.

Flexible Mounting: Works with foot forward or foot down mounting positions.

Premium Accessories: Includes hawse fairlead, battery leads, and handsaver strap for complete setup.

Why Choose ComeUp GIO 120s Winch

Proven Reliability: Designed by ComeUp, a globally trusted brand known for industrial-grade winches.

Fast & Controlled Recovery: Advanced planetary gear system and precision braking for smooth line handling.

Additional information

Specification	Details
Part Number	PN 853860
Rated Line Pull	5,443 kg / 12,000 lb (single line)
Motor	4,847 W / 6.5 HP 12V series-wound
Gear Train	3-stage planetary (234.6:1)
Clutch Type	Freespooling rotating ring gear
Brake Type	No. 37C exclusive brake (device inside drum)
Construction	Aluminum die-cast housing with steel drum
Drum Size	63.5 mm × 222.5 mm (2.5” × 8.8”)
Control	Waterproof remote with 5 m (17 ft) cord
Rope Type	Synthetic rope 11 mm × 25.5 m (7/16” × 83.7’)
Mounting Bolt Pattern	254 mm × 114 mm (10” × 4.5”)
Mounting Options	Foot forward / foot down compatible
Finish	Matte black powder-coated
Net Weight	35.2 kg / 77.6 lb
Gross Weight	47.2 kg / 104.1 lb
Box Dimensions (L × D × H)	650 × 195 × 415 mm (25.6” × 7.7” × 16.3”)
Waterproof Rating	IP68
Warranty	Lifetime (mechanical) + 1 year (electrical)

Compatibility

Suitable for 4×4 SUVs, pickup trucks, and off-road vehicles
Designed for 12V DC electrical systems
Compatible with standard winch bumpers, mounting plates, and recovery cradles
Supports foot forward and foot down mounting configurations
Ideal for vehicles requiring up to 12,000 lb (5.4 tonnes) pulling capacity

Package

Package Includes

1 × ComeUp GIO 120s Winch
1 × Hawse Fairlead
1 × Waterproof Remote (5 m cord)
1 × Synthetic Rope with Clevis Hook
1 × 1.8 m 2-Gauge Battery Lead
1 × Handsaver Strap

Performance Specifications

Line Pull (kg / lb)	Line Speed (mpm / fpm)	Amp Draw (12V)
No Load	7.8 / 25.6	45 A
1,361 / 3,000	4.5 / 14.6	110 A
2,722 / 6,000	4.0 / 13.0	165 A
4,082 / 9,000	3.5 / 11.4	220 A
5,443 / 12,000	2.7 / 8.9	340 A

Line Pull and Rope Capacity

Rope Layer	Pull by Layer (kg / lb)	Total Rope on Drum (m / ft)
1st	5,443 / 12,000	4.6 / 15
2nd	4,188 / 9,233	10.5 / 34.4
3rd	3,404 / 7,505	17.8 / 58.3
4th	2,867 / 6,321	25.5 / 83.7

Important

Safety & Warranty

Not intended for lifting personnel or vertical loads.
Maintain at least 5 rope wraps on drum during operation.
Warranty: Lifetime (mechanical) + 1 year (electrical). Rope not covered after initial use.
