ComeUp GIO 100 Winch

Name: ComeUp GIO 100 Winch
SKU: 9867
Availability: InStock

In stock

₹ 51,000.00 (incl. taxes) .

The ComeUp GIO 100 Winch delivers 10,000lb pulling capacity with a 5.5HP 12V motor, steel cable, and IP68 waterproof design for off-road recovery.

Buy It Now

Shipping Extra & Exchanges*
Flexible and secure payment
600,000 happy customers

Guarantee Safe & Secure Checkout

Description

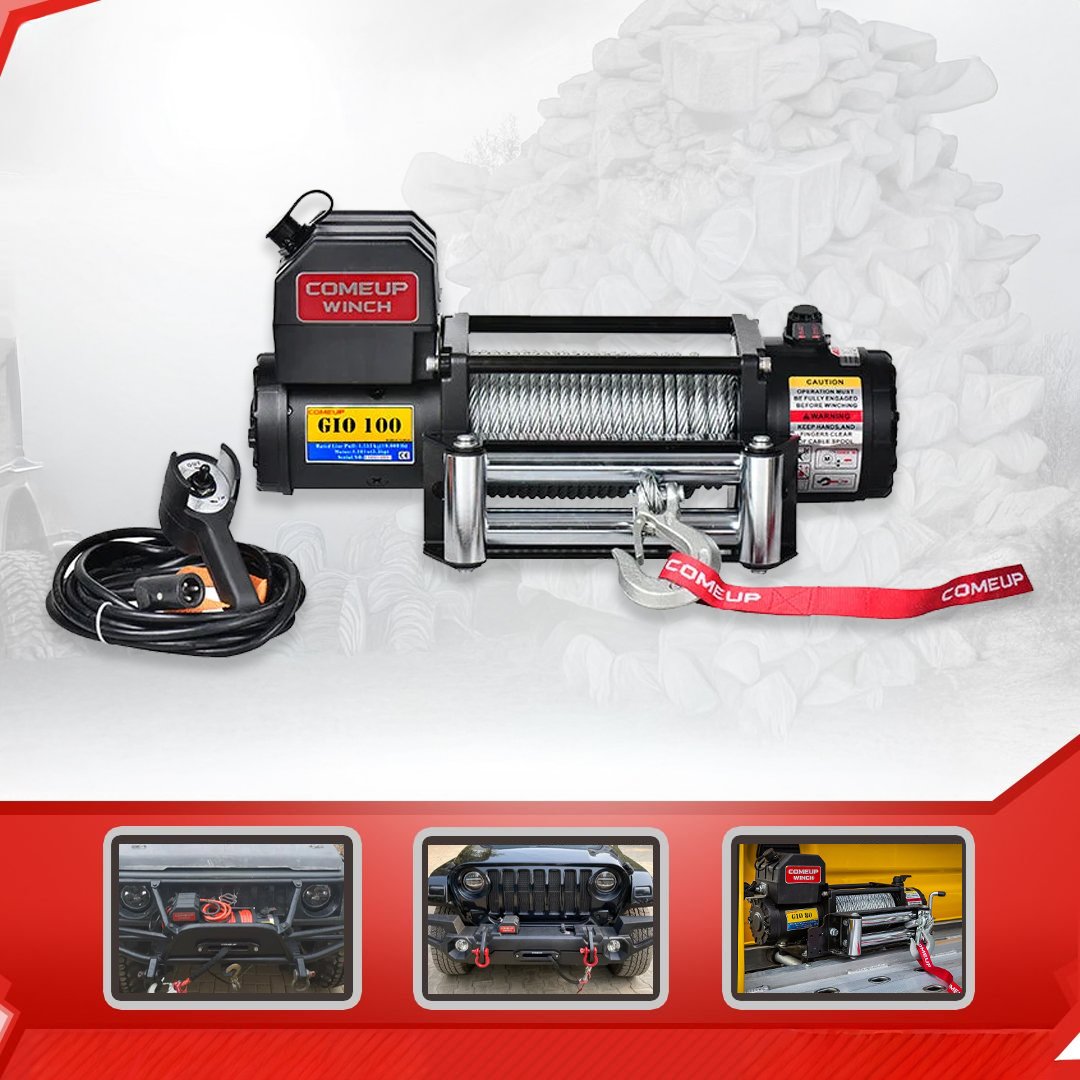

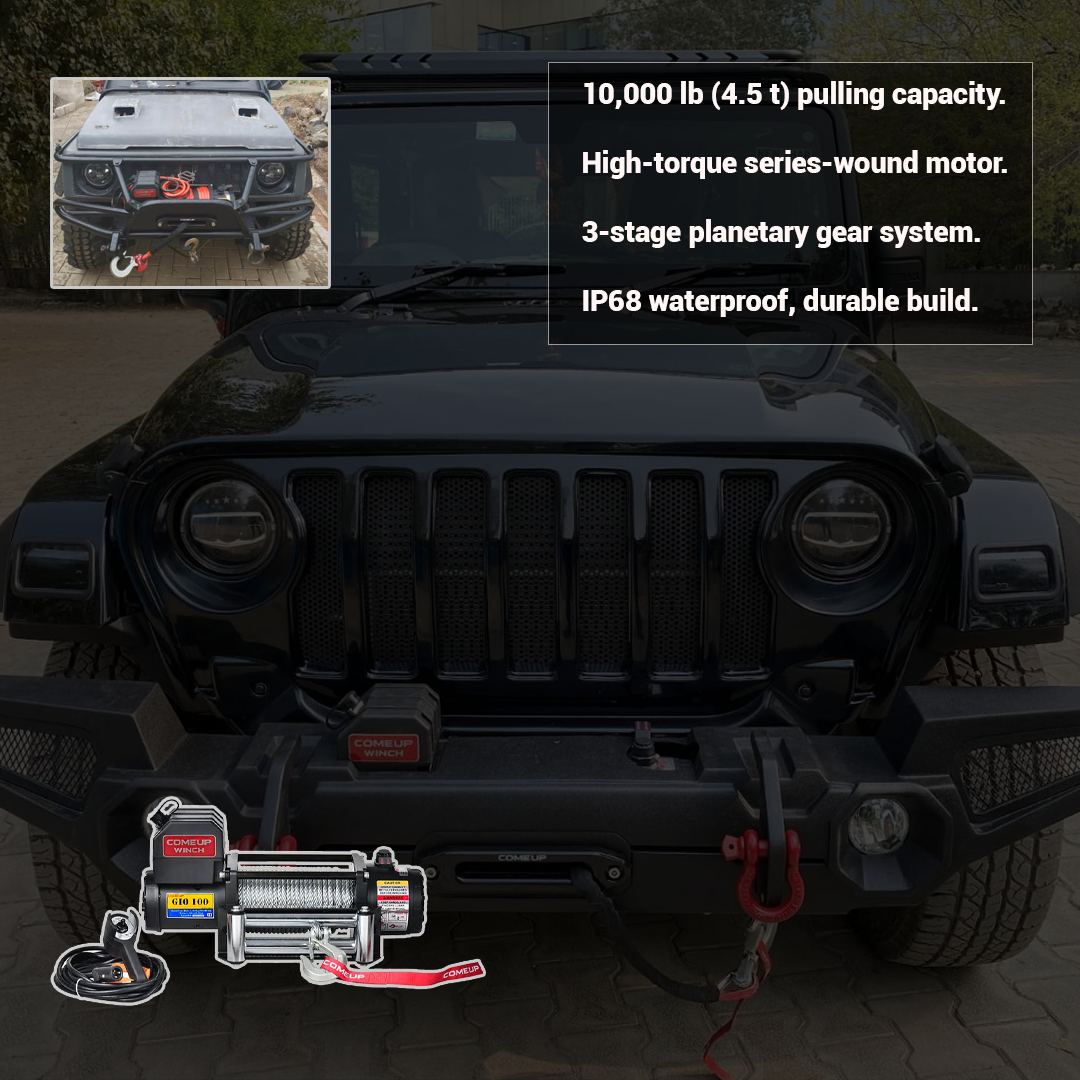

ComeUp GIO 100 Winch

The ComeUp GIO 100 Winch is a powerful 12V self-recovery winch engineered for tough off-road and utility applications. Offering 10,000 lb (4,535 kg) pulling capacity, it combines a 5.5 HP series-wound motor, three-stage planetary gear train, and an exclusive internal brake system for superior control and performance. Its steel cable construction, corrosion-resistant coating, and IP68 waterproof rating make it ideal for challenging terrains and weather conditions.

Key Features

Heavy-Duty Recovery Power: Rated at 10,000 lb (4.5 tonnes), perfect for off-road 4x4s, pickups, and utility vehicles.

Strong 12V Series-Wound Motor: 5.5 HP (4,101 W) motor ensures fast and consistent line speed under load.

Smooth 3-Stage Planetary Gear Train: 234.6:1 ratio delivers efficient power transfer with low noise and high durability.

Exclusive No. 37C Brake System: Internal drum-mounted brake provides steady holding power and precise control.

Durable Steel Wire Rope: 9.5 mm × 26 m (3/8” × 85.3’) aircraft-grade galvanized rope ensures strength and longevity.

Weatherproof Construction: IP68-rated sealing and matte powder-coated finish resist water, dust, and corrosion.

Compact Control Pack: Mounted above the motor for convenience, with removable design for varied installations.

Universal Mount Compatibility: Works with 10” × 4.5” bolt patterns, suitable for most bumpers and mounting plates.

Why Choose ComeUp GIO 100 Winch

Professional-Grade Build: Designed for heavy-duty recovery and off-road enthusiasts seeking reliable performance.

Precision Braking Control: Exclusive No. 37C brake design enhances safety and responsiveness during use.

Weatherproof Reliability: IP68 waterproof protection ensures consistent operation in rain, mud, or sand.

Additional information

Specification	Details
Part Number	PN 853841
Rated Line Pull	4,535 kg / 10,000 lb (single line)
Motor	4,101 W / 5.5 HP 12V series-wound
Gear Train	3-stage planetary (234.6:1 ratio)
Clutch Type	Rotating ring gear (freespooling)
Brake Type	Exclusive ComeUp No. 37C internal drum brake
Construction	Aluminum die-cast housings with steel drum

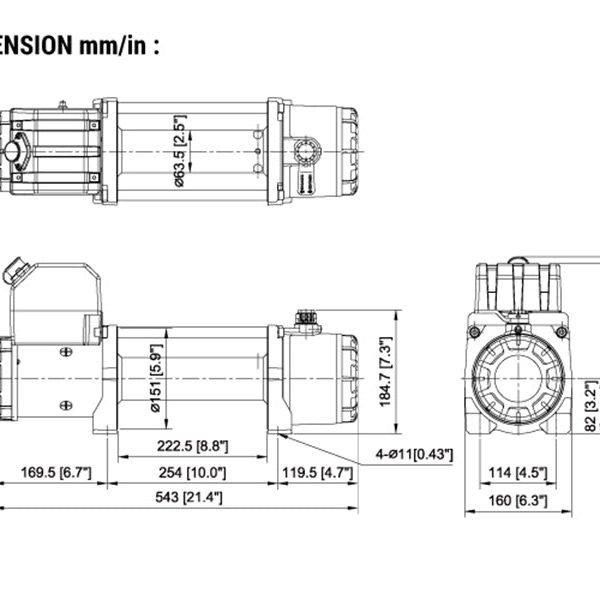

Drum Size	63.5 mm × 222.5 mm (2.5” × 8.8”)
Control	Waterproof remote control (5 m / 17’ cord)
Rope Type	Galvanized aircraft steel rope (A7 × 19)
Rope Size	9.5 mm × 26 m (3/8” × 85.3’)
Mounting Bolt Pattern	254 mm × 114 mm (10” × 4.5”)
Mounting Options	Foot forward or foot down
Finish	Matte black powder-coated
Net Weight	35.6 kg / 78.5 lb
Gross Weight	50.6 kg / 111.5 lb
Box Dimensions (L×D×H)	650 × 195 × 415 mm (25.6” × 7.7” × 16.3”)
Waterproof Rating	IP68
Warranty	Lifetime (mechanical) + 1 year (electrical)

Important

Safety & Warranty

Not for lifting personnel or vertical loads.
Maintain at least five wraps of rope on drum during use.
Warranty: Lifetime (mechanical) + 1 year (electrical). Wire rope excluded after initial use.

Performance Specifications

Line Pull (kg / lb)	Line Speed (mpm / fpm)	Amp Draw (12V)
No Load	8.3 / 27.2	45 A
1,134 / 2,500	4.0 / 13.1	120 A
2,268 / 5,000	3.3 / 10.9	200 A
3,402 / 7,500	3.1 / 10.3	260 A
4,535 / 10,000	2.9 / 9.5	310 A

Line Pull and Rope Capacity

Rope Layer	Pull by Layer (kg / lb)	Total Rope on Drum (m / ft)
1st	4,535 / 10,000	5.3 / 17.4
2nd	3,598 / 7,932	11.9 / 39.0
3rd	2,982 / 6,574	19.9 / 65.3
4th	2,547 / 5,615	26 / 85.3

Accessories

Standard Accessories

Roller Fairlead
Waterproof Remote Control with 5 m (17’) Cord
Wire Rope with Clevis Hook
1.8 m (6’) 2-Gauge Battery Lead
Handsaver Strap

Compatibility

Suitable for 4×4 SUVs, pickups, and off-road recovery vehicles
Compatible with 12V DC electrical systems
Fits standard winch bumpers and mounting plates
Ideal for vehicles requiring up to 4.5 tonnes (10,000 lb) pulling capacity

Package

Package Includes

1 × ComeUp GIO 100 Winch
1 × Wire Rope with Clevis Hook
1 × Waterproof Remote Control (5 m / 17’ Cord)
1 × Roller Fairlead
1 × 1.8 m (6’) 2-Gauge Battery Lead
1 × Handsaver Strap
