ComeUp GIO 100s Winch

In stock

 59,500.00 (incl. taxes) .

The ComeUp GIO 100s Winch offers 10,000lb (4.5T) pulling capacity, IP68 waterproof rating, synthetic rope, and durable 12V power for 4×4 recovery.

Buy It Now
  • Shipping Extra & Exchanges*
  • Flexible and secure payment
  • 600,000 happy customers
Guarantee Safe & Secure Checkout

Description

ComeUp GIO 100s Winch

The ComeUp GIO 100s Winch is a premium 12V self-recovery winch designed for powerful, smooth, and safe recovery operations. Delivering 10,000 lb (4,535 kg) of pulling capacity, this winch features a 5.5 HP series-wound motor, a three-stage planetary gear train, and a synthetic rope system for lightweight strength. Built to withstand extreme off-road conditions, it carries an IP68 waterproof rating, fine powder-coated finish, and precision braking system for full control during demanding recoveries.

Key Features

Heavy-Duty Pulling Power: Rated at 10,000 lb (4.5 tonnes), ideal for SUVs, pickups, and 4×4 recovery.

High-Performance Motor: Series-wound 5.5 HP (4,101 W) 12V motor delivers strong, consistent torque and fast line speeds.

Smooth Gear Train: 3-stage planetary system (234.6:1) ensures efficient and reliable power transfer.

Exclusive Brake Design: Features the ComeUp No. 37C braking device for smooth control under load.

Lightweight Synthetic Rope: 10 mm ร— 26 m high-strength rope reduces recoil risk and improves handling.

Compact Mounting Options: Control pack mounted above the motor, removable for multiple installation setups.

Weatherproof Build: IP68-rated sealed construction with fine powder-coated finish for corrosion resistance.

Universal Fitment: Works with standard 10โ€ ร— 4.5โ€ mounting bolt patterns for easy installation on 4x4s and trucks.

Why Choose ComeUp GIO 100s Winch

Proven Reliability: Built to handle demanding recoveries with precision, durability, and consistent performance.

Safety and Control: Inside-the-drum brake design provides stable stopping power even during steep recoveries.

All-Terrain Durability: IP68 waterproof sealing resists mud, dust, and water ingress for all-weather operation.


Discover more from ROAVION - Powered by AutoBacs India

Subscribe to get the latest posts sent to your email.

SpecificationDetails
Part NumberPN 853839
Rated Line Pull4,535 kg / 10,000 lb (single line)
Motor4,101 W / 5.5 HP 12V series-wound
Gear Train3-stage planetary (234.6:1 ratio)
Clutch TypeRotating ring gear (freespooling)
Brake TypeExclusive ComeUp No. 37C device (inside drum)
ConstructionAluminum die-cast housings with steel drum
Drum Size63.5 mm ร— 222.5 mm (2.5โ€ ร— 8.8โ€)
ControlWaterproof remote control (5 m / 17โ€™ cord)
Rope TypeSynthetic rope
Rope Size10 mm ร— 26 m (3/8โ€ ร— 85.3โ€™)
Mounting Bolt Pattern254 mm ร— 114 mm (10โ€ ร— 4.5โ€)
Mounting OptionsFoot forward or foot down
FinishMatte black powder-coated
Net Weight33.7 kg / 74.3 lb
Gross Weight45.2 kg / 99.6 lb
Box Dimensions (Lร—Dร—H)650 ร— 195 ร— 415 mm (25.6โ€ ร— 7.7โ€ ร— 16.3โ€)
Waterproof RatingIP68
WarrantyLifetime (mechanical) + 1 year (electrical)

Compatibility

Compatibility

  • Suitable for 4×4 SUVs, pickups, and recovery trucks

  • Compatible with 12V DC systems

  • Works with standard winch bumpers and mounting plates

  • Ideal for vehicles requiring up to 10,000 lb (4.5 tonnes) pulling capacity


Discover more from ROAVION - Powered by AutoBacs India

Subscribe to get the latest posts sent to your email.

Package

Package Includes

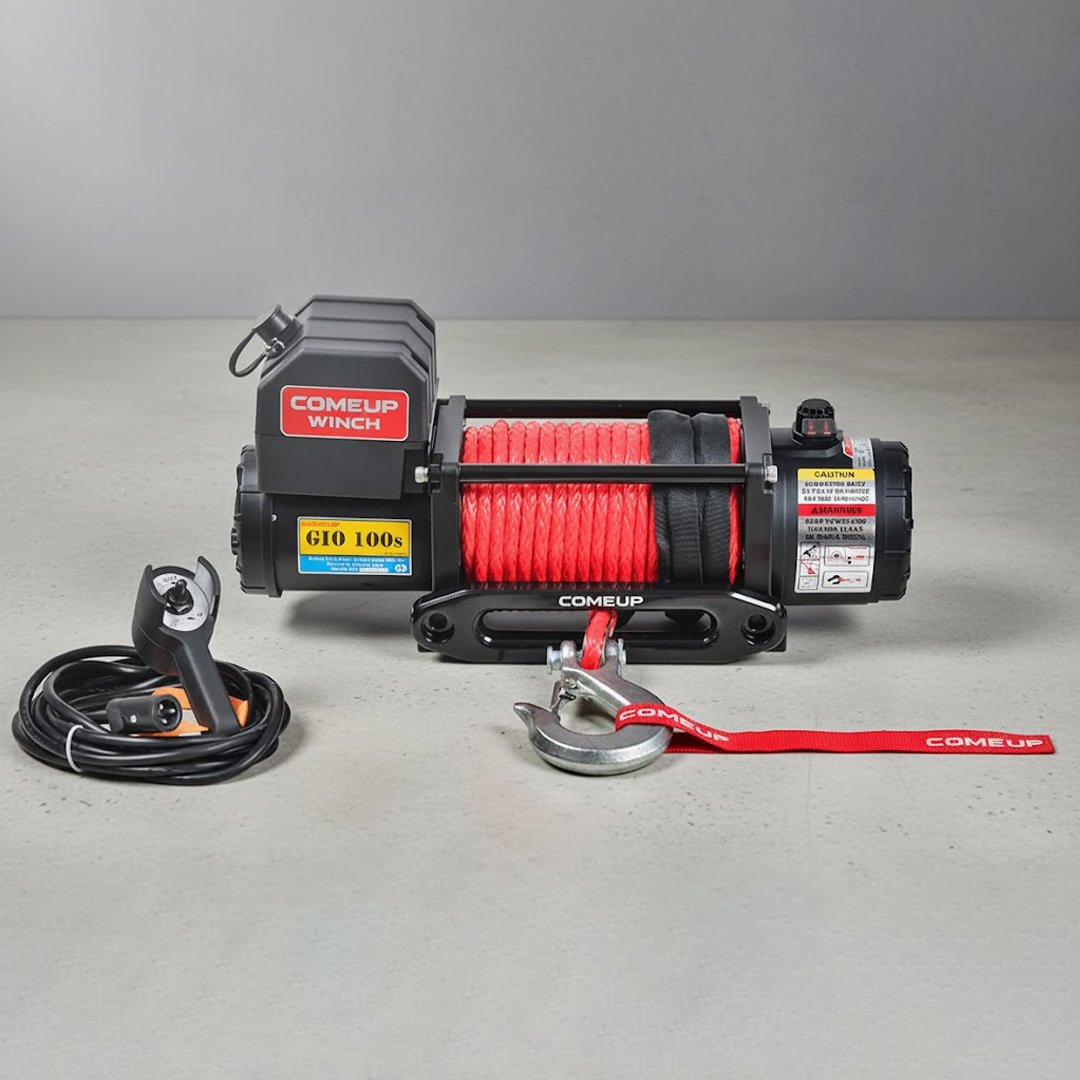

  • 1 ร— ComeUp GIO 100s Winch

  • 1 ร— Synthetic Rope with Clevis Hook

  • 1 ร— Waterproof Remote Control with 5 m (17โ€™) Cord

  • 1 ร— Hawse Fairlead

  • 1 ร— 1.8 m (6โ€™) 2-Gauge Battery Lead

  • 1 ร— Handsaver Strap


Discover more from ROAVION - Powered by AutoBacs India

Subscribe to get the latest posts sent to your email.

Important

Safety & Warranty

  • Not designed for lifting personnel or vertical hoisting.

  • Always maintain at least five wraps of rope on the drum.

  • Warranty: Lifetime (mechanical) + 1 year (electrical). Synthetic rope excluded after initial use.


Discover more from ROAVION - Powered by AutoBacs India

Subscribe to get the latest posts sent to your email.

Performance Specifications

Performance Specifications

Line Pull (kg / lb)Line Speed (mpm / fpm)Amp Draw (12V)
No Load8.3 / 27.245 A
1,134 / 2,5004.0 / 13.1120 A
2,268 / 5,0003.3 / 10.9200 A
3,402 / 7,5003.1 / 10.3260 A
4,535 / 10,0002.9 / 9.5310 A

Discover more from ROAVION - Powered by AutoBacs India

Subscribe to get the latest posts sent to your email.

Line Pull and Rope Capacity

Line Pull and Rope Capacity

Rope LayerPull by Layer (kg / lb)Total Rope on Drum (m / ft)
1st4,535 / 10,0005.0 / 16.5
2nd3,598 / 7,93211.4 / 37.4
3rd2,982 / 6,57419.2 / 62.9
4th2,547 / 5,61526 / 85.3

Discover more from ROAVION - Powered by AutoBacs India

Subscribe to get the latest posts sent to your email.

Accessories

Standard Accessories

  • Hawse Fairlead

  • Waterproof Remote Control with 5 m (17โ€™) Cord

  • Synthetic Rope with Clevis Hook

  • 1.8 m (6โ€™) 2-Gauge Battery Lead

  • Handsaver Strap
